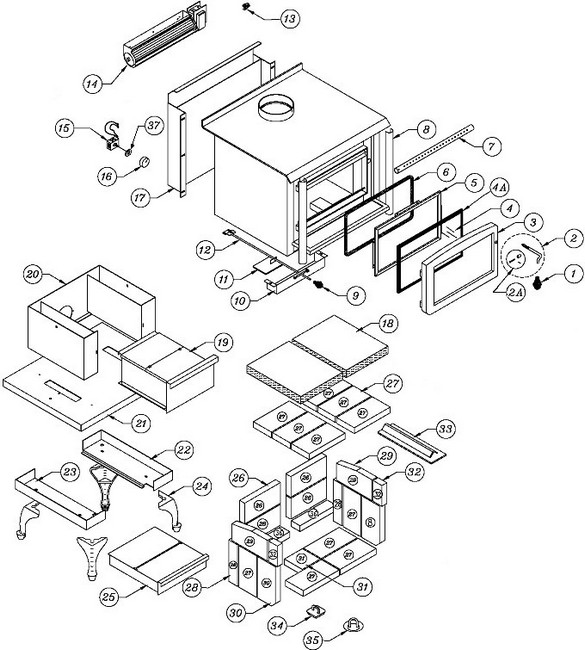

Part # |
Description |
Qty |
| 1 |
AC07860 |
1/2 " BRASS PLATED COIL HANDLE |
1 |
| 2 |
AC09187 |
HANDLE AND LATCH KIT |
1 |
| 2 |
AC09185 |
DOOR LATCH KIT |
1 |
| 3 |
SE24022 |
BLACK CAST IRON DOOR 1600 OSBURN (WD203) |
1 |
| 4 |
SE34102 |
REPLACEMENT GLASS WITH GASKET 10 1/8" X 16 1/8" |
1 |
| 4 |
AC06400 |
BLACK SELF-ADHESIVE GLASS GASKET KIT (6') |
1 |
| 5 |
SE34060 |
GLASS RETAINER FRAME WITH GASKET 1000-1100-1600 SERIE |
1 |
| 6 |
OA11395 |
SILICONE AND GASKET REPLACEMENT KIT 1/2" x 8' |
1 |
| 7 |
PL34019 |
FRONT SECONDARY AIR TUBE |
1 |
| 8 |
PL34039-01 |
NICKEL DECORATIVE COLUMN 1600 STOVE |
2 |
| 9 |
AC07864 |
1/4 " BRASS PLATED LONG COIL HANDLE |
1 |
| 10 |
PL34027 |
AIR CONTROL COVER |
1 |
| 11 |
SE34021 |
AIR CONTROL PLATE |
1 |
| 12 |
SE34024 |
AIR CONTROL ROD ASSEMBLY |
1 |
| 13 |
44092 |
3 POSITION ROCKER SWITCH (HI-OFF-LOW) |
1 |
| 14 |
44070 |
CROSSFLOW BLOWER 115V-60Hz-56W (B) |
1 |
| 14 |
44082 |
BLOWER 110CFM 240V |
1 |
| 15 |
44080 |
RHEOSTAT WITH NUT |
1 |
| 16 |
44085 |
RHEOSTAT KNOB |
1 |
| 17 |
SE34025 |
REAR HEAT SHIELD ASSEMBLY |
1 |
| 18 |
PL34047 |
10 1/2" x 13 1/2" x 1" BAFFLE INSULATION |
2 |
| 19 |
SE34044 |
ASH DRAWER 1600 (PEDESTAL) |
1 |
| 20 |
99999 |
BUILD TO ORDER |
1 |
| 21 |
99999 |
BUILD TO ORDER |
1 |
| 22 |
PL34010 |
LEGS AND DRAWER RIGHT MOUNTING SUPPORT |
1 |
| 23 |
PL34009 |
LEFT LEGS AND DRAWER SUPPORT |
1 |
| 24 |
24023 |
BLACK CAST IRON LEG WITH LEVELING BOLT |
4 |
| 24 |
24023PN |
BRUSH NICKEL PLATING CAST IRON LEG OSBURN |
4 |
| 24 |
24023PG |
GOLD CAST IRON LEG OSBURN (EL0010) |
4 |
| 25 |
SE34037 |
ASH DRAWER FOR OSBURN 1600 ON LEGS |
1 |
| 26 |
29016 |
4 1/2" x 9" x 2 1/2" REFRACTORY BRICK HD |
4 |
| 27 |
29020 |
4 1/2'' X 9'' X 1 1/4'' REFRACTORY BRICK HD |
11 |
| 28 |
PL36021 |
REFRACTORY BRICK 2 1/8" X 9" X 1 1/4'' |
4 |
| 29 |
PL36055 |
4 1/2" X 9" X 7/8" X 5'' REFRACTORY BRICK |
2 |
| 30 |
PL36046 |
4" 1/2 X 9" X 1" X 1" REFRACTORY BRICK |
2 |
| 31 |
PL36049 |
4 1/2" X 4 1/2'' X 1 1/4'' REFRACTORY BRICK |
1 |
| 32 |
PL36024 |
1 7/8" X 4 1/2" X 1 1/4" REFRACTORY BRICK |
2 |
| 33 |
SE34013 |
MIDDLE BAFFLE SUPPORT (6S008) |
1 |
| 34 |
SE16059 |
ASH DUMP PLUG |
1 |
| 35 |
VP00141 |
OLD ROUND ASHDUMP COVER - EP001 |
1 |
| 36 |
44080 |
RHEOSTAT WITH NUT |
1 |
