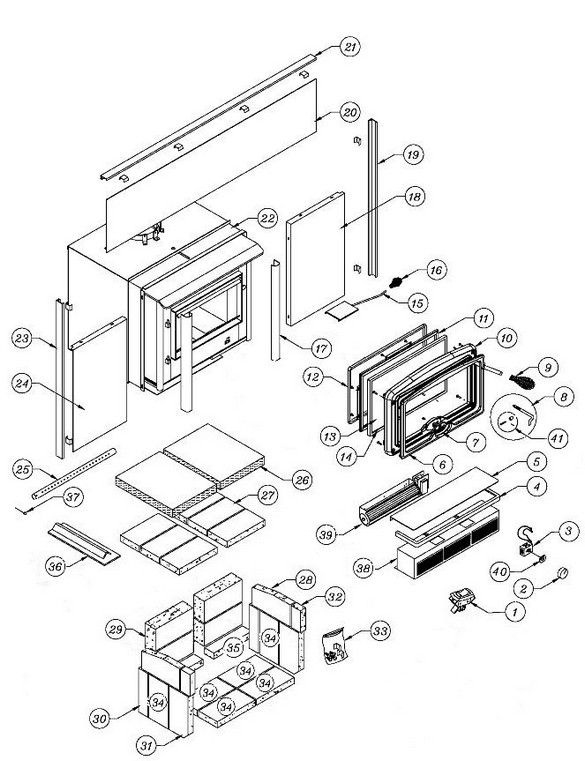

Part # |
Description |
Qty |
| 1 |
44086 |
BLOWER 240V |
1 |
| 2 |
44085 |
RHEOSTAT KNOB |
1 |
| 3 |
44080 |
RHEOSTAT WITH NUT |
1 |
| 4 |
PL34079 |
BRASS ASH SHELF TRIM |
1 |
| 4 |
PL34079-01 |
BLACK ASH SHELF TRIM |
1 |
| 5 |
SE34078 |
ASH TRAY (6N009) |
1 |
| 6 |
OA10230 |
BLACK CAST IRON DOOR OVERLAY 1600 |
1 |
| 6 |
OA10231 |
BROWN CAST IRON DOOR OVERLAY 1600 |
1 |
| 6 |
OA10232 |
GOLD PLATED CAST IRON DOOR OVERLAY1600 |
1 |
| 6 |
OA10234 |
BRUSHED NICKEL CAST IRON DOOR OVERLAY 1600 |
1 |
| 7 |
30450 |
OSBURN DOOR LOGO |
1 |
| 8 |
AC09187 |
HANDLE AND LATCH KIT |
1 |
| 9 |
AC07860 |
1/2 " BRASS PLATED COIL HANDLE |
1 |
| 10 |
SE24164 |
OSBURN 1000, 1100, 1600 CAST IRON DOOR WITH HANDLE |
1 |
| 11 |
SE34060 |
GLASS RETAINER FRAME WITH GASKET 1000-1100-1600 SERIE |
1 |
| 12 |
OA11395 |
SILICONE AND GASKET REPLACEMENT KIT 1/2" x 8' |
1 |
| 13 |
SE34103 |
REPLACEMENT GLASS WITH GASKET 10 1/8" X 16 1/8" |
1 |
| 14 |
AC06400 |
BLACK SELF-ADHESIVE GLASS GASKET KIT (6') |
1 |
| 15 |
SE34065 |
AIR CONTROL MECHANISM |
1 |
| 16 |
AC07864 |
1/4 " BRASS PLATED LONG COIL HANDLE |
1 |
| 17 |
PL34070 |
BRASS SIDE DECORATIVE COLOMN |
2 |
| 18 |
PL34087 |
FACEPLATE RIGHT SIDE |
1 |
| 18 |
PL34092 |
FACEPLATE RIGHT SIDE |
1 |
| 19 |
20020A |
RIGHT GOLD TRIM 29" (AF2244) |
1 |
| 19 |
20021A |
RIGHT GOLD TRIM 32" (AF2246) |
1 |
| 20 |
PL34089 |
FACEPLATE TOP |
1 |
| 20 |
PL34090 |
FACEPLATE TOP |
1 |
| 21 |
20020 |
TOP GOLD TRIM 44" |
1 |
| 21 |
20021 |
TOP GOLD TRIM 50" |
1 |
| 22 |
PL34062 |
FACEPLATE EXTENSION (6N004) |
1 |
| 23 |
20020B |
LEFT GOLD TRIM 29" (AF1243) |
1 |
| 23 |
20021B |
LEFT GOLD TRIM 32" (AF1245) |
1 |
| 24 |
PL34088 |
FACEPLATE LEFT SIDE |
1 |
| 24 |
PL34091 |
FACEPLATE LEFT SIDE |
1 |
| 25 |
PL34019 |
FRONT SECONDARY AIR TUBE |
1 |
| 26 |
PL34047 |
10 1/2" x 13 1/2" x 1" BAFFLE INSULATION |
2 |
| 27 |
29020 |
4 1/2'' X 9'' X 1 1/4'' REFRACTORY BRICK HD |
12 |
| 28 |
PL36055 |
4 1/2" X 9" X 7/8" X 5'' REFRACTORY BRICK |
2 |
| 29 |
29016 |
4 1/2" x 9" x 2 1/2" REFRACTORY BRICK HD |
4 |
| 30 |
PL36021 |
REFRACTORY BRICK 2 1/8" X 9" X 1 1/4'' |
4 |
| 31 |
PL36046 |
4" 1/2 X 9" X 1" X 1" REFRACTORY BRICK |
2 |
| 32 |
PL36024 |
1 7/8" X 4 1/2" X 1 1/4" REFRACTORY BRICK |
2 |
| 33 |
SE15099 |
FACEPLATE HARDWARE KIT |
1 |
| 34 |
44070 |
CROSSFLOW BLOWER 115V-60Hz-56W (B) |
1 |
| 35 |
SE36003 |
120 CFM BLOWER/FAN WITH HOUSING |
1 |
| 36 |
SE34013 |
MIDDLE BAFFLE SUPPORT (6S008) |
1 |
| 37 |
AC09185 |
DOOR LATCH KIT |
1 |
| 38 |
30068 |
STAINLESS STEEL COTTER PIN 1/8" X 1 1/2" |
1 |
| 39 |
44087 |
RHEOSTAT NUT |
1 |
