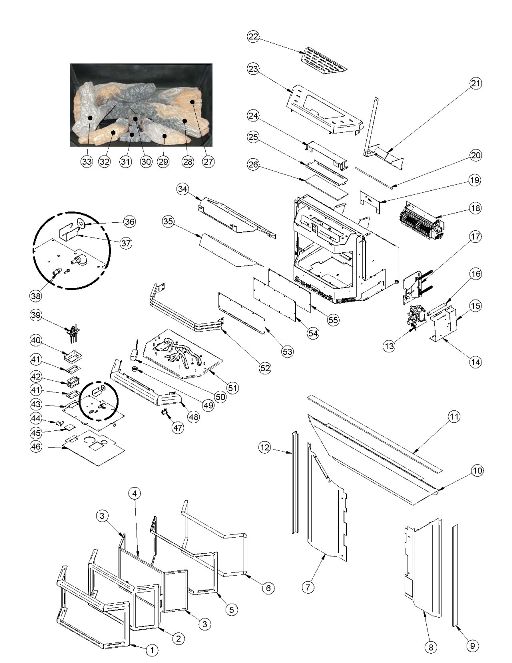

Part # |
Description |
Qty |
| 1 |
SE41008 |
CONTROL PANEL DOOR (WB128) |
1 |
| 2 |
28060 |
GOLD PLATED ASH DRAWER HANDLE |
1 |
| 3 |
PL41023 |
VALVE CONTROL PANEL (WB1096) |
1 |
| 4 |
PL41016 |
DECORATIVE ASH TRAY |
1 |
| 5 |
44080 |
RHEOSTAT WITH NUT |
1 |
| 5 |
44084 |
RHEOSTAT WITH NUT |
1 |
| 6 |
44087 |
RHEOSTAT NUT |
1 |
| 7 |
99999 |
BUILD TO ORDER |
1 |
| 7 |
OA10172 |
GOLD PLATED TRIM KIT FOR OSBURN PELLET STOVE |
1 |
| 8 |
OA10140 |
BLACK DOOR OVERLAY FOR 2200/WB38 |
1 |
| 8 |
OA10145 |
GOLD DOOR OVERLAY FOR 2200/WB38 |
1 |
| 8 |
OA10150 |
BRUSHED NICKEL DOOR OVERLAY FOR 2200/WB38 |
1 |
| 9 |
SE41101 |
DOOR ASSEMBLY W/O OVERLAY |
1 |
| 10 |
40011 |
TADPOLE 1/4" ROPE OSBURN HB33 |
1 |
| 11 |
21019 |
DOOR GASKET IN 1/4 CERAMIC PAPER |
8 |
| 12 |
PL41104 |
"CENTRE GLASS 12"" X 17.5"" (2S1045)" |
2 |
| 13 |
SE41107 |
WESTBAY 38 REMPLACEMENT SIDE GLASS (2S1044) |
1 |
| 14 |
PL35102 |
SIDE GLASS RETAINER OSBURN 2200 |
2 |
| 15 |
PL35103 |
TOP OR BOTTOM GLASS RETAINER OSBURN 2200 |
2 |
| 16 |
OA11390 |
SILICONE & DOOR GASKET REPLACEMENT KIT 7/8" (8 FEET) |
1 |
| 17 |
30439 |
TENSION CLAMP |
4 |
| 18 |
30454 |
DOUBLE MAGNET |
4 |
| 19 |
PL41014 |
AIR JACKET LEFTSIDE |
1 |
| 20 |
PL41015 |
AIR JACKET RIGHTSIDE |
1 |
| 21 |
PL41004 |
CABINET INNER DOOR PANEL |
2 |
| 22 |
PL41003 |
BASE |
1 |
| 23 |
PL41005 |
PEDESTAL RIGHTSIDE |
1 |
| 24 |
PL41006 |
PEDESTAL LEFTSIDE |
1 |
| 25 |
PL41026 |
INNER PEDESTAL SUPPORT |
2 |
| 26 |
30457 |
SINGLE MAGNET |
2 |
| 27 |
PL41028 |
REAR PEDESTAL COVER |
1 |
| 28 |
44070 |
CROSSFLOW BLOWER 115V-60Hz-56W (B) |
1 |
| 28 |
44079 |
BLOWER 120CFM 115V (CZ007) |
1 |
| 29 |
21029 |
BOTTOM GASKET IN 1/8 CERAMIC PAPER |
1 |
| 30 |
49052 |
VALVE HONEYWELL WESTBAY (HG93) |
1 |
| 31 |
SE07706 |
DORMONT GAS LINE 10" |
1 |
| 32 |
49051 |
PILOT ASSEMBLY S.I.T. NG (WITH LABEL) (HG77-HG35) |
1 |
| 32 |
49127 |
PILOT S.I.T.ASS TOP CONVERTIBLE LP(WITH LABEL) (HG71-HG36) |
1 |
| 33 |
49001 |
THREADED PILOT ORIFICE LP (HG79) |
1 |
| 33 |
49041 |
THREADED PILOT ORIFICE NATURAL GAS (HG78) |
1 |
| 34 |
99999 |
BUILD TO ORDER |
1 |
| 35 |
PL41022 |
AIR SHUTTER HANDLE |
1 |
| 36 |
21022 |
PILOT GASKET IN 1/8 CERAMIC PAPER |
1 |
| 37 |
21030 |
AIR INTAKE GASKET IN 1/8 CERAMIC PAPER |
1 |
| 38 |
PL41031 |
FRONT AIR INLET COVER PLATE |
1 |
| 40 |
9071-01 |
PROPANE # 52 INTAKE BURNER (ORIFICE) |
1 |
| 40 |
49071 |
#31 NATURAL BURNER ORIFICE |
1 |
| 41 |
SE41150 |
BURNER WESTBAY 38 (WB122) |
1 |
| 42 |
PL41044 |
SIDE PRESSURE RELIEF HATCH |
2 |
| 43 |
PL41075 |
EXPLOSION GASKET |
2 |
| 44 |
PL41033 |
FRONT PRESSURE RELIEF HATCH |
1 |
| 45 |
PL41083 |
EXPLOSION GASKET - FRONT HATCH INSULATION |
1 |
| 46 |
OA11170 |
WESTBAY 38 LOG SET |
1 |
| 47 |
OA11170A |
FRONT LOG (WB1083) 5 LOGS VERSION |
1 |
| 48 |
OA11170B |
BACK LOG (WB1084) 5 LOGS VERSION |
1 |
| 49 |
OA11170C |
LEFT- TOP '' Y'' LOG (WB1085) 5 LOGS VERSION |
1 |
| 50 |
OA11170D |
CENTRE-TOP '' Y'' LOG (WB1086) 5 LOGS VERSION |
1 |
| 51 |
OA11170E |
RIGHT-TOP '' Y'' LOG (WB1087) 5 LOGS VERSION |
1 |
| 52 |
PL41034 |
BAFFLE |
1 |
| 53 |
21033 |
AIR INTAKE GASKET IN 1/8 CERAMIC PAPER |
1 |
| 54 |
PL41012 |
AIR INLET PLATE |
1 |
| 55 |
21032 |
AIR INTAKE GASKET IN 1/8 CERAMIC PAPER |
1 |
| 56 |
PL41010 |
AIR INTAKE DUCK |
1 |
| 57 |
21031 |
GAS OUTLET GASKET IN 1/8 CERAMIC PAPER |
1 |
| 58 |
PL41011 |
ESHAUST PLATE |
1 |
| 59 |
21024 |
EXHAUST GASKET IN 1/8 CERAMIC PAPER |
1 |
| 60 |
49069 |
ADAPTER INNER 4'' DIRECT VENT (HM112) |
1 |
| 61 |
21034 |
AIR INTAKE GASKET IN 1/8 CERAMIC PAPER |
1 |
| 62 |
49073 |
ADAPTER OUTER 6-5/8'' DIRECT VENT (HM113) |
1 |
| 63 |
PL41025 |
REAR HEAT SHIELD |
1 |
| 64 |
PL41030 |
REAR AIR INLET COVER PLATE |
1 |
| 65 |
SE41002 |
STOVE TOP |
1 |
| 66 |
PL41046 |
DECORATIVE TOP TRIVET |
1 |
| 66 |
PL41046PG |
GOLD DECORATIVE TOP TRIVET |
1 |
| 66 |
PL41046PN |
TOP DECORATIVE NICKEL TRIVET |
1 |
| 67 |
PL41036 |
TRIVET TOP VENT WEST BAY |
1 |
| 67 |
PL41036PG |
GOLD TRIVET TOP VENT WEST BAY |
1 |
| 67 |
PL41036PN |
TRIVET TOP VENT WEST BAY |
1 |
| 68 |
PL41047 |
VENT RESTRICTOR PLATE (wb1099) |
1 |
