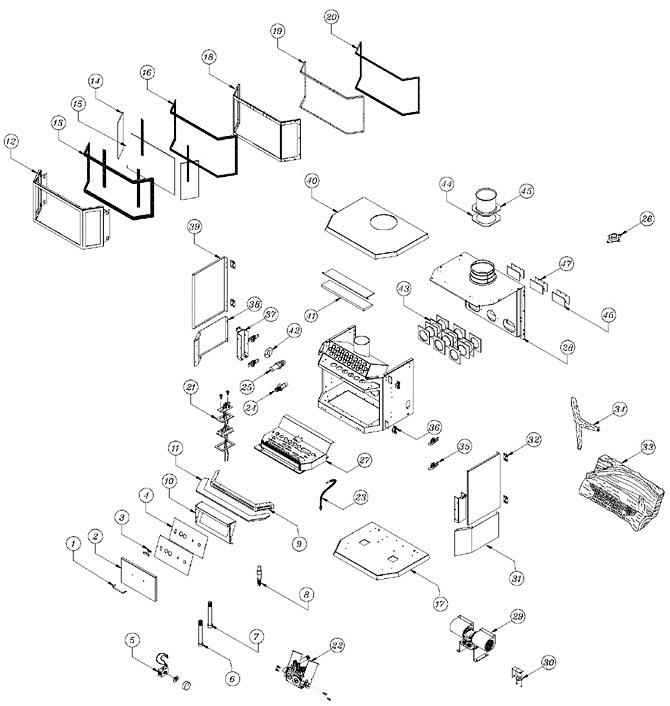

Part # |
Description |
Qty |
| 1 |
28060 |
GOLD PLATED ASH DRAWER HANDLE |
1 |
| 2 |
PL40037 |
CONTROL PANEL DOOR INNER |
1 |
| 3 |
44093 |
ROCKER SWITCH 2 POSITION (ON - OFF) WITH GOLD CONTACT |
1 |
| 4 |
PL40031 |
CONTROL PANEL OVERLAY |
1 |
| 5 |
44080 |
RHEOSTAT WITH NUT |
1 |
| 5 |
44085 |
RHEOSTAT KNOB |
1 |
| 6 |
49173 |
PILOT/ON/OFF EXTENTION KNOB (S.I.T. 78MM) |
1 |
| 7 |
49174 |
HIGH/LOW CONTROL KNOB EXTENTION (S.I.T. 78MM) |
1 |
| 8 |
49129 |
PIEZO IGNITER (HG58) |
1 |
| 9 |
SE40106 |
UPPER GRILLE LA 30 VICTORIEN STYLE |
1 |
| 10 |
PL40033 |
CONTROL PANEL FRAME |
1 |
| 11 |
PL40042 |
ASH LIP |
1 |
| 12 |
PL40172 |
DOOR OVERLAY |
1 |
| 13 |
40011 |
TADPOLE 1/4" ROPE OSBURN HB33 |
6 |
| 14 |
SE40101 |
LA30 REMPLACEMENT GLASS (LA1066) |
2 |
| 15 |
SE40100 |
LA30 REMPLACEMENT GLASS(LA1065) |
1 |
| 16 |
40018 |
SELF-ADHESIVE 1/8" X 3/8" GASKET HB26 |
9 |
| 17 |
PL40028 |
BASE, PEDESTAL |
1 |
| 18 |
PL40170 |
GLASS GASKET RETAINER |
1 |
| 19 |
PL40171 |
ROPE RETAINER |
1 |
| 20 |
40009 |
"1/2"FIBERGLASS ROPE IN GRAPHITE HB37 |
6 |
| 21 |
49051 |
PILOT ASSEMBLY S.I.T. NG (WITH LABEL) (HG77-HG35) |
1 |
| 21 |
49127 |
PILOT S.I.T.ASS TOP CONVERTIBLE LP(WITH LABEL) (HG71-HG36) |
1 |
| 21 |
21021 |
PILOT BRACKET GASKET IN 1/8 CERAMIC PAPER |
1 |
| 21 |
21022 |
PILOT GASKET IN 1/8 CERAMIC PAPER |
1 |
| 22 |
49126 |
S.I.T. VALVE NOVA 0820-651 LP (HG34) |
1 |
| 22 |
49133 |
S.I.T. VALVE NOVA 0820-652 NATURAL GAS (HG33) |
1 |
| 23 |
SE07706 |
DORMONT GAS LINE 10" |
1 |
| 24 |
49152 |
ORIFICE HG52 pilot #51 NAT S.I.T. 0.977.159 |
1 |
| 24 |
49151 |
ORIFICE pilot LP #30 S.I.T. 0.977.157 (HG51) |
1 |
| 24 |
49001 |
THREADED PILOT ORIFICE LP (HG79) |
1 |
| 24 |
49041 |
THREADED PILOT ORIFICE NATURAL GAS (HG78) |
1 |
| 25 |
9071-0 |
# 36 NATURAL INTAKE BURNER (ORIFICE) |
1 |
| 25 |
9071-01 |
PROPANE # 52 INTAKE BURNER (ORIFICE) |
1 |
| 26 |
44047 |
EXHAUST SPILL SWITCH THERMODISC |
1 |
| 27 |
SE40150 |
BURNER LA30 |
1 |
| 28 |
PL40053 |
TOP INSOLATION( 7'' X 18.5'' X 1'' NUM=8 CERAMIC BLANKET) |
1 |
| 29 |
44079 |
BLOWER 120CFM 115V (CZ007) |
1 |
| 29 |
44078 |
BLOWER 138CFM 240V |
1 |
| 29 |
OA11150 |
BLOWER ASSEMBLY - COMPLETE FG007 |
1 |
| 30 |
PL36042 |
THERMODISC BRACKET FIXATION |
1 |
| 30 |
44046 |
THERMODISC F110-20F |
1 |
| 31 |
PL40030 |
PEDESTAL RIGHTSIDE |
1 |
| 32 |
30013 |
HINGE 2'' X 1-1/2'' |
4 |
| 33 |
OA11380 |
MAIN LOG LA30 LA1124 |
1 |
| 34 |
OA11385 |
TWIG LA30 LA1125 |
1 |
| 35 |
30439 |
TENSION CLAMP |
4 |
| 36 |
30454 |
DOUBLE MAGNET |
4 |
| 37 |
PL40034 |
FIREBOX SUPPORT |
2 |
| 38 |
PL40029 |
PEDESTAL LEFTSIDE |
1 |
| 39 |
PL40021 |
DECORATIF SIDE LEFT OR RIGHT |
2 |
| 40 |
SE40023 |
STOVE TOP |
1 |
| 41 |
PL40060 |
FRONT HATCH INSOLATION (3'' X 13'' X 1/2'' NUM=6 CERAMIC BL |
1 |
| 42 |
21038 |
VENTURY SILICONE GASKET 3/4"O.D 3/8" I.D. X 1/8'' THICK |
1 |
| 43 |
21027 |
AIR TUBE GASKET IN 1/4 CERAMIC PAPER |
6 |
| 44 |
21024 |
EXHAUST GASKET IN 1/8 CERAMIC PAPER |
1 |
| 45 |
49037 |
"4" FLUE OUTLET ADAPTER" |
1 |
| 46 |
PL40038 |
VENT PLATES, INTAKE |
3 |
| 46 |
21023 |
AIR INTAKE GASKET IN 1/8 CERAMIC PAPER |
3 |
