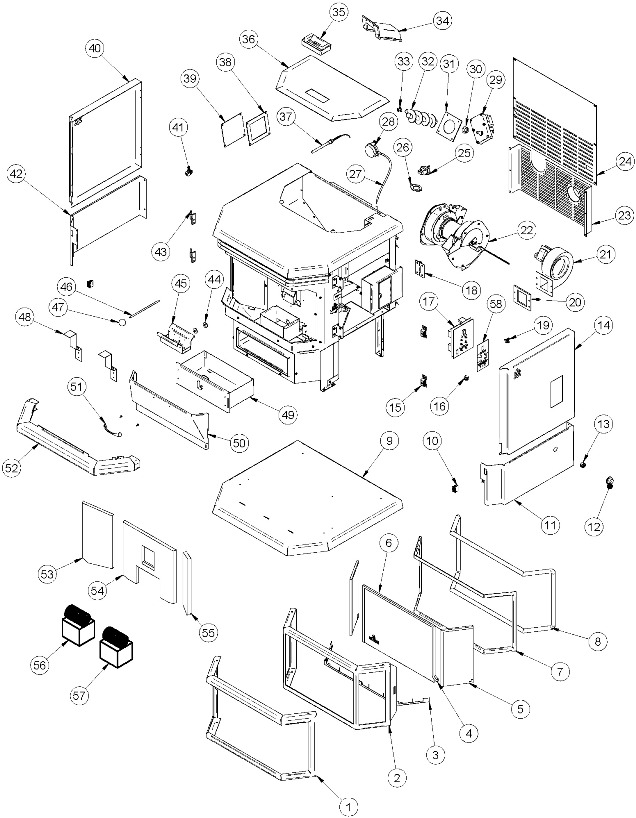

OSBURN PARTS BREAKDOWN: PELLET STOVE HYBRID
45 SERIAL # 0-1619

‹ BACK TO THE PARTS PAGE



# Part # Description Qty
1 OA10140 BLACK DOOR OVERLAY FOR 2200/WB38 1
1 OA10145 GOLD DOOR OVERLAY FOR 2200/WB38 1
1 OA10150 BRUSHED NICKEL DOOR OVERLAY FOR 2200/WB38 1
2 SE52555 OSBURN 45 DOOR ASSEMBLY WITH GLASS AND GASKET 1
3 PL52553 GLASS AIR WASH TRIM 1
4 AC06400 BLACK SELF-ADHESIVE GLASS GASKET KIT (6') 1
5 SE52710 REPLACEMENT GLASS WITH GASKET 5 3/4" X 12" 2
6 SE52709 REPLACEMETN GLASS WITH GASKET 12" X 17 1/2" 1
7 PL52552 GLASS RETAINER FRAME 1
8 OA11390 SILICONE & DOOR GASKET REPLACEMENT KIT 7/8" (8 FEET) 1
9 PL52503 1
10 30368 ALUMINUM SINGLE MAGNET 2
11 PL52505 RIGHT SIDE OF PEDESTAL 1
12 60015 CONTROL KNOB 1
13 30412 Bl universal snap-in bushing 50-008-130 1
14 PL52513 RIGHT SIDE DECORATIVE PANEL 1
15 30454 DOUBLE MAGNET 4
16 44058 THERMODISC 36T12 F160 1
17 44032 CONTROL BOARD FOR PELLET STOVE 45 SERIES VERSION 1 1
18 30013 HINGE 2'' X 1-1/2'' 6
19 44041 THERMODISC L250F MANUAL RESET 36T16 1
20 44040 CONVECTION BLOWER FOR PELLET STOVE 1
21 21107 NEOPRENE DURO 60 GASKET CONVECTION 1
22 SE44039 COMBEX BLOWER 120 VOLTS 45 SERIE 1
23 SE52576 REAR PEDESTAL PANEL 1
24 PL52527 UPPER BACK PLATE 1
25 SE09243 F125 THERMODISC RETROFIT F140 1
26 21129 INSULATION GASKET F120 MICRO, F140 11-029-085 1
27 49004 PRESSURE SWITCH HOSE 1
28 44038 AUGER GEAR MOTOR 1 RPM 1
29 30528 BRASS BUSHING FOR PELLET STOVE AUGER 1
30 21110 AUGER PLATE GASKET 1
31 24017 AUGER FOR 35 AND 45 SERIE 1
32 44059 THERMODISC 36T11 L250-25 AUTOMATIC 2
33 SE52592 ASSEMBLED HEAT SHIELD 1
34 30527 HOPPER LID PLASTIC HANDLE 1
35 SE52520 OSBURN 45 HOPPER LID 1
36 44030 PELLET STOVE IGNITER 1
37 21112 CLEANING TRAP GASKET 1
38 PL52564 EXHAUST ACCESS PANEL FOR MAINTENANCE 1
39 PL52512 LEFT SIDE DECORATIVE PANEL 1
40 44098 HOPPER LID SAFETY SWITCH 1
41 PL52506 LEFT SIDE OF PEDESTAL 1
42 SE35021 HINGE ASSEMBLY 2
43 AC09189 MAINTENANCE GASKET KIT 45 SERIES 1
44 SE52545 PELLET BURN POT ASSEMBLY 45 SERIE 1
45 30546 THREADED HEAT EXCHANGER ROD 45 SERIE 1
46 30562 3/4" X 1/4''-20 ROUND HANDLE FOR EXCHANGER ROD 1
47 PL52582 LOG SUPPORT OSBURN 45 2
48 SE52523 OSBURN 45 ASH DRAWER 1
49 SE52508 ASH DRAWER ACCESS DOOR 1
50 28062 BLACK DRAWER HANDLE 3 25/32" 1
51 30108 MECHANICAL SCREW M4 X 8MM PAN PHILLIPS ZINC 2
52 PL41016 DECORATIVE ASH TRAY 1
53 21114 OSBURN PELLET 45 LH SIDE DECORATIVE PANEL 1
54 21116 OSBURN 45 PELLET MIDDLE DECORATIVE PANEL 1
55 21115 OSBURN PELLET 45 RH SIDE DECORATIVE PANEL 1
56 OA10025 HYBRID-45 DECORATIVE LOG SET 1
57 45000 LEXAN PELLET STOVE OSBURN 1
58 44013 FUSE 7.5A / 250V / 1/4" DIA. X 1 1/4'' LONG 1
59 44015 FUSE 5A / 250V / 1/4" DIA. X 1 1/4'' LONG 1
