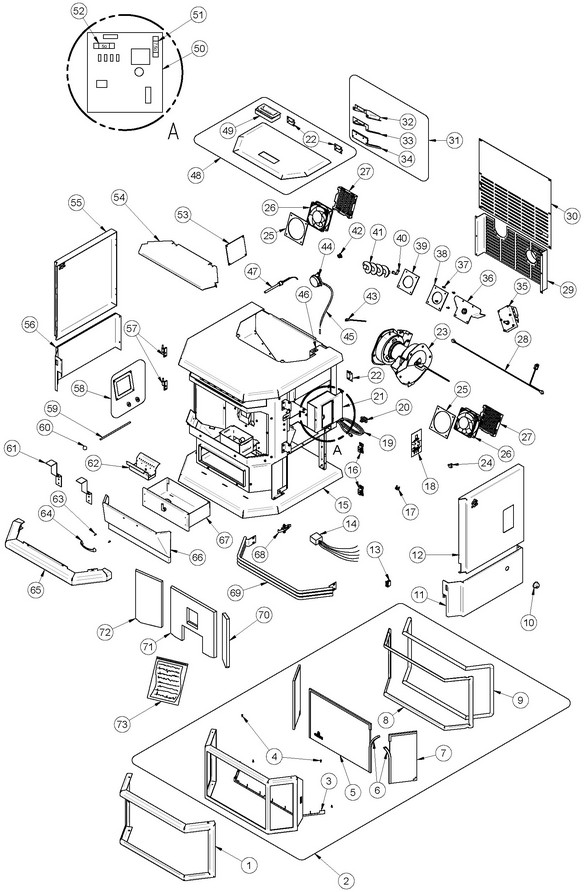

Part # |
Description |
Qty |
| 1 |
OA10140 |
BLACK DOOR OVERLAY FOR 2200/WB38 |
1 |
| 1 |
OA10145 |
GOLD DOOR OVERLAY FOR 2200/WB38 |
1 |
| 1 |
OA10150 |
BRUSHED NICKEL DOOR OVERLAY FOR 2200/WB38 |
1 |
| 2 |
SE52555 |
OSBURN 45 DOOR ASSEMBLY WITH GLASS AND GASKET |
1 |
| 3 |
PL52553 |
GLASS AIR WASH TRIM |
1 |
| 4 |
30021 |
SELF TAPPING SCREW 8-32 "F" TYPE X 7/16" FLAT HEAD PHILLIPS |
4 |
| 5 |
SE52710 |
REPLACEMENT GLASS WITH GASKET 5 3/4" X 12" |
1 |
| 6 |
AC06400 |
BLACK SELF-ADHESIVE GLASS GASKET KIT (6') |
3 |
| 7 |
SE52709 |
REPLACEMETN GLASS WITH GASKET 12" X 17 1/2" |
1 |
| 8 |
PL52522 |
CONVECTION BLOWER ADAPTER |
1 |
| 9 |
OA11390 |
SILICONE & DOOR GASKET REPLACEMENT KIT 7/8" (8 FEET) |
1 |
| 10 |
60015 |
CONTROL KNOB |
1 |
| 11 |
PL52505 |
RIGHT SIDE OF PEDESTAL |
1 |
| 12 |
PL52513 |
RIGHT SIDE DECORATIVE PANEL |
1 |
| 13 |
30368 |
ALUMINUM SINGLE MAGNET |
1 |
| 14 |
60286 |
WIRE HARNESS 45 SERIE VERSION 3 |
1 |
| 15 |
PL52503 |
|
1 |
| 16 |
30454 |
DOUBLE MAGNET |
2 |
| 17 |
44058 |
THERMODISC 36T12 F160 |
1 |
| 18 |
45227 |
LEXAN DROLET PELLET STOVE |
1 |
| 19 |
60013 |
POWER CORD 96" X 18-3 |
1 |
| 20 |
60036 |
THERMOSTAT TERMINAL |
1 |
| 21 |
30013 |
HINGE 2'' X 1-1/2'' |
1 |
| 22 |
SE44039 |
COMBEX BLOWER 120 VOLTS 45 SERIE |
1 |
| 23 |
21177 |
CONVECTION FAN GASKET |
2 |
| 24 |
44041 |
THERMODISC L250F MANUAL RESET 36T16 |
1 |
| 25 |
44100 |
TUBEAXIAL BLOWER 115V-60Hz-18W |
2 |
| 26 |
PL49048 |
FINGER GUARD FILTER SUPPORT |
2 |
| 27 |
60281 |
CONVECTION FAN WIRING 35 ET 45 SERIE |
1 |
| 28 |
SE52576 |
REAR PEDESTAL PANEL |
1 |
| 29 |
PL52527 |
UPPER BACK PLATE |
1 |
| 30 |
SE52597 |
HOPPER HEAT SHEILD |
1 |
| 31 |
PL52597 |
|
1 |
| 32 |
PL52598 |
|
1 |
| 33 |
21192 |
HOPPER HEAT SHIELD INSULATION 45 SERIE |
1 |
| 34 |
44038 |
AUGER GEAR MOTOR 1 RPM |
1 |
| 35 |
PL52516 |
AUGER SUPPORT |
1 |
| 36 |
30528 |
BRASS BUSHING FOR PELLET STOVE AUGER |
1 |
| 37 |
21110 |
AUGER PLATE GASKET |
1 |
| 38 |
24017 |
AUGER FOR 35 AND 45 SERIE |
1 |
| 39 |
44059 |
THERMODISC 36T11 L250-25 AUTOMATIC |
1 |
| 40 |
44095 |
THERMISTOR |
1 |
| 41 |
44029 |
PRESSURE SWITCH |
1 |
| 42 |
49004 |
PRESSURE SWITCH HOSE |
1 |
| 43 |
44098 |
HOPPER LID SAFETY SWITCH |
1 |
| 44 |
44132 |
PELLET IGNITER 120 V WITH ALLEN SET SCREW |
1 |
| 45 |
SE52520 |
OSBURN 45 HOPPER LID |
1 |
| 46 |
30527 |
HOPPER LID PLASTIC HANDLE |
1 |
| 47 |
30013 |
HINGE 2'' X 1-1/2'' |
2 |
| 48 |
44064 |
CONTROL BOARD 45 SERIE (VERSION 2) |
1 |
| 49 |
44013 |
FUSE 7.5A / 250V / 1/4" DIA. X 1 1/4'' LONG |
1 |
| 50 |
44015 |
FUSE 5A / 250V / 1/4" DIA. X 1 1/4'' LONG |
1 |
| 51 |
PL52564 |
EXHAUST ACCESS PANEL FOR MAINTENANCE |
1 |
| 52 |
PL52507 |
BAFFLE |
1 |
| 53 |
PL52512 |
LEFT SIDE DECORATIVE PANEL |
1 |
| 54 |
PL52506 |
LEFT SIDE OF PEDESTAL |
1 |
| 55 |
SE35021 |
HINGE ASSEMBLY |
1 |
| 56 |
AC09189 |
MAINTENANCE GASKET KIT 45 SERIES |
1 |
| 57 |
30546 |
THREADED HEAT EXCHANGER ROD 45 SERIE |
1 |
| 58 |
30562 |
3/4" X 1/4''-20 ROUND HANDLE FOR EXCHANGER ROD |
1 |
| 59 |
PL52582 |
LOG SUPPORT OSBURN 45 |
1 |
| 60 |
SE52545 |
PELLET BURN POT ASSEMBLY 45 SERIE |
1 |
| 61 |
30108 |
MECHANICAL SCREW M4 X 8MM PAN PHILLIPS ZINC |
2 |
| 62 |
28062 |
BLACK DRAWER HANDLE 3 25/32" |
1 |
| 63 |
PL41016 |
DECORATIVE ASH TRAY |
1 |
| 64 |
SE52508 |
ASH DRAWER ACCESS DOOR |
1 |
| 65 |
SE52523 |
OSBURN 45 ASH DRAWER |
1 |
| 66 |
30439 |
TENSION CLAMP |
1 |
| 67 |
OA10170 |
BLACK TRIM KIT FOR OSBURN PELLET STOVE |
1 |
| 67 |
OA10172 |
GOLD PLATED TRIM KIT FOR OSBURN PELLET STOVE |
1 |
| 67 |
OA10174 |
NICKEL TRIM KIT FOR OSBURN PELLET STOVE |
1 |
| 68 |
21115 |
OSBURN PELLET 45 RH SIDE DECORATIVE PANEL |
1 |
| 69 |
21114 |
OSBURN PELLET 45 LH SIDE DECORATIVE PANEL |
1 |
| 70 |
21116 |
OSBURN 45 PELLET MIDDLE DECORATIVE PANEL |
1 |
| 71 |
SE45165 |
OWNER MANUEL OSBURN PELLET STOVE |
1 |
