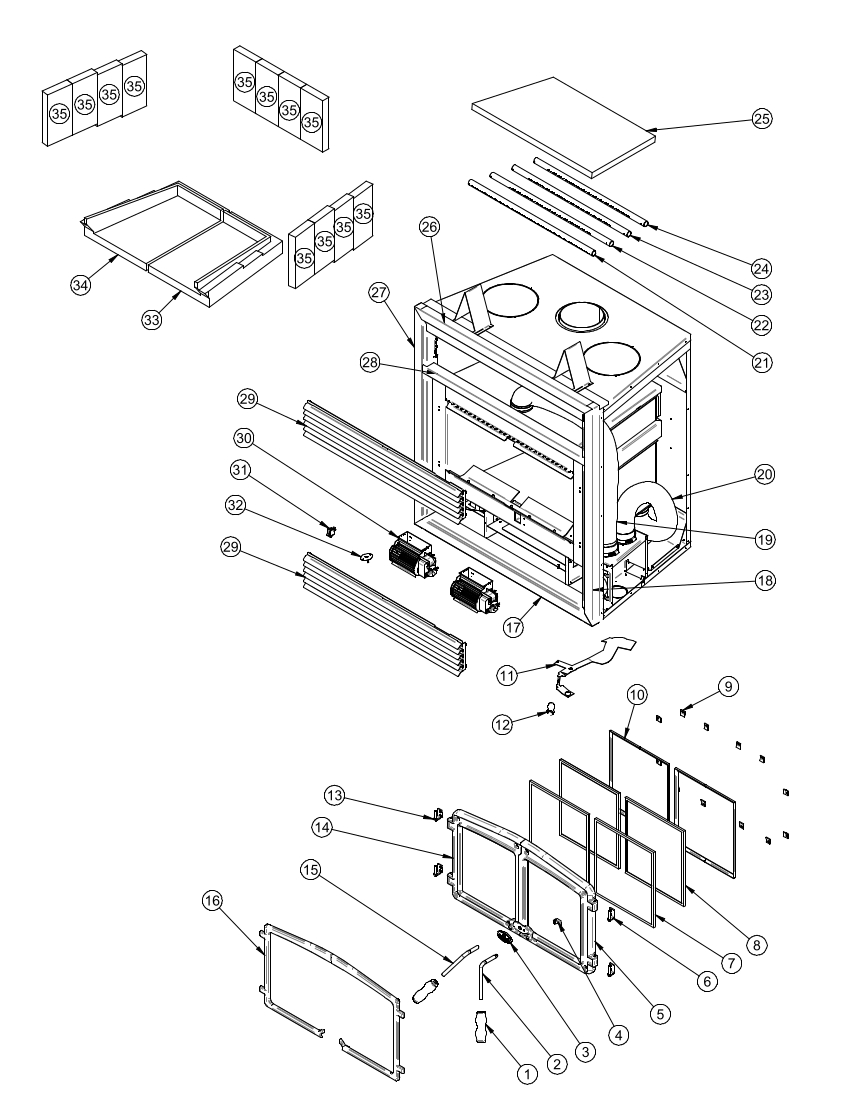

Part # |
Description |
Qty |
| 1 |
30560 |
FIREPLACE WOOD HANDLE STRADFORD 4.376" |
2 |
| 2 |
PL53095 |
FIREPLACE RIGHT DOOR HANDLE ROD |
1 |
| 3 |
30450 |
OSBURN DOOR LOGO |
1 |
| 4 |
24153 |
FIREPLACE DOOR LATCH |
1 |
| 5 |
SE24162 |
STRATFORD RIGHT DOOR WITH HANDLE AND GASKET |
1 |
| 6 |
99998 |
DISCONTINUED |
2 |
| 7 |
AC06500 |
SILICONE AND 5/8" X 8' BLACK GASKET KIT |
2 |
| 8 |
SE53240 |
REMPLACEMENT GLASS WITH GASKET 13 3/16" X 11 7/8" |
2 |
| 9 |
PL53585 |
GLASS RETAINER |
12 |
| 10 |
PL53110 |
STRATFORD RIGHT OR LEFT GLASS RETAINER FRAME |
4 |
| 11 |
PL53020 |
AIR DRAFT CONTROL |
1 |
| 12 |
30561 |
AIR CONTROL BROWN WOODEN HANDLE |
1 |
| 13 |
99998 |
DISCONTINUED |
2 |
| 14 |
SE24160 |
STRATFORD LEFT DOOR WITH HANDLE AND GASKET |
1 |
| 15 |
PL53096 |
FIREPLACE LEFT DOOR HANDLE ROD |
1 |
| 16 |
OA10600 |
BLACK CAST IRON DOOR OVERLAY |
1 |
| 16 |
OA10601 |
GOLD PLATED CAST IRON DOOR OVERLAY |
1 |
| 16 |
OA10602 |
BRUSHED NICKEL CAST IRON DOOR OVERLAY |
1 |
| 17 |
PL53016 |
|
1 |
| 18 |
PL53014 |
|
1 |
| 19 |
21075 |
ALUMINUM LINER 2 PLY 3.149'' X 46'' (COMPRE AT 34 3/4'') |
1 |
| 20 |
21076 |
2 PLY ALUMINUM LINER 3.149'' X 36'' (COMPRESSED AT 27 1/2'') |
1 |
| 21 |
PL53030 |
FRONT SECONDARY AIR TUBE |
1 |
| 22 |
PL53031 |
FRONT CENTER SECONDARY AIR TUBE |
1 |
| 23 |
PL53032 |
REAR CENTER SECONDARY AIR TUBE |
1 |
| 24 |
PL53033 |
REAR SECONDARY AIR TUBE |
1 |
| 25 |
21134 |
VERMICULITE BAFFLE 24 3/16'' X 14 25/32'' X 1 1/4'' |
1 |
| 26 |
PL53012 |
FACEPLATE TOP |
1 |
| 27 |
PL53013 |
|
1 |
| 28 |
PL53046 |
CENTRAL SECTION OF FACEPLATE |
1 |
| 29 |
OA10604 |
BLACK TRIM KIT |
1 |
| 29 |
OA10605 |
GOLD PLATED TRIM KIT |
1 |
| 29 |
OA10606 |
NICKEL TRIM KIT |
1 |
| 30 |
44073 |
CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM (P) |
2 |
| 31 |
44091 |
ROCKER SWITCH 2 POSITION MSR-8 |
1 |
| 32 |
44046 |
THERMODISC F110-20F |
1 |
| 33 |
21121 |
18 3/4" X 13 1/2" X 1" BAFFLE INSULATION |
1 |
| 34 |
22120 |
EPA FIREPLACE LEFTFLOOR BRICK |
1 |
| 35 |
29020 |
4 1/2'' X 9'' X 1 1/4'' REFRACTORY BRICK HD |
12 |
