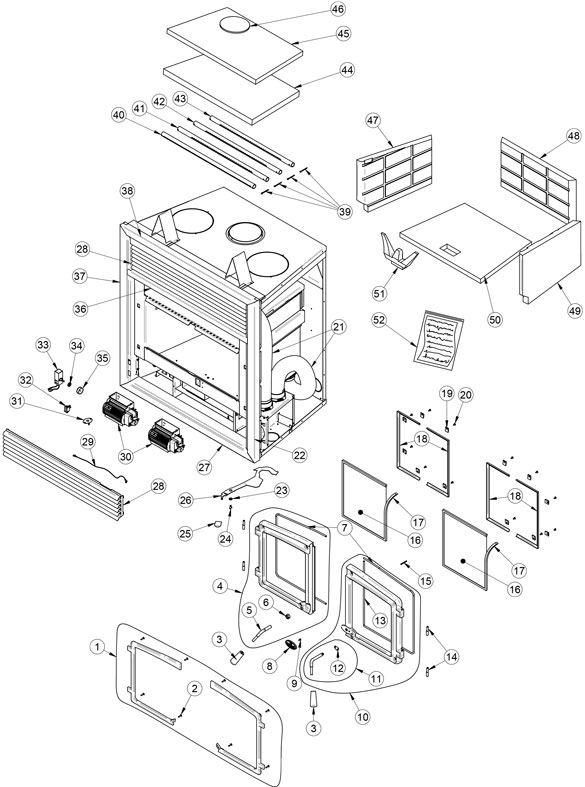

Part # |
Description |
Qty |
| 1 |
OA10600 |
BLACK CAST IRON DOOR OVERLAY |
1 |
| 1 |
OA10601 |
GOLD PLATED CAST IRON DOOR OVERLAY |
1 |
| 1 |
OA10602 |
BRUSHED NICKEL CAST IRON DOOR OVERLAY |
1 |
| 2 |
30123 |
SCREW #8 - 32 X 5/8'' PAN QUADREX ZINC |
8 |
| 3 |
30569 |
BLACK ROUND WOODEN HANDLE |
2 |
| 4 |
SE24160 |
STRATFORD LEFT DOOR WITH HANDLE AND GASKET |
1 |
| 5 |
PL53101 |
FIREPLACE LEFT DOOR HANDLE ROD |
1 |
| 6 |
30039 |
NUT 1/2-20 |
1 |
| 7 |
AC06500 |
SILICONE AND 5/8" X 8' BLACK GASKET KIT |
1 |
| 8 |
30450 |
OSBURN DOOR LOGO |
1 |
| 9 |
30021 |
SELF TAPPING SCREW 8-32 "F" TYPE X 7/16" FLAT HEAD PHILLIPS |
1 |
| 10 |
SE24162 |
STRATFORD RIGHT DOOR WITH HANDLE AND GASKET |
1 |
| 11 |
PL53100 |
FIREPLACE RIGHT DOOR HANDLE ROD |
1 |
| 12 |
30114 |
SPRING PIN 5/32" DIA X 5/8" LONG |
1 |
| 13 |
24163 |
CAST IRON RIGHT DOOR OVERLAY OSBURN EPA FIREPLACE |
1 |
| 14 |
40030 |
ROUND 1/4" ROPE WITH ADHESIVE |
2 |
| 15 |
30101 |
SPRING TENSION PIN 5/32" DIA X 1 1/2" LONG |
1 |
| 16 |
SE53240 |
REMPLACEMENT GLASS WITH GASKET 13 3/16" X 11 7/8" |
1 |
| 17 |
AC06400 |
BLACK SELF-ADHESIVE GLASS GASKET KIT (6') |
1 |
| 18 |
PL53110 |
STRATFORD RIGHT OR LEFT GLASS RETAINER FRAME |
2 |
| 19 |
PL53585 |
GLASS RETAINER |
12 |
| 20 |
30124 |
SCREW #8 - 32 X 5/16'' TRUSS QUADREX ZINC |
12 |
| 21 |
99999 |
BUILD TO ORDER |
2 |
| 22 |
PL53147 |
RH SIDE OF FACEPLATE |
1 |
| 23 |
30185 |
17/64" "AA" TYPE WASHER |
1 |
| 24 |
30060 |
THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC |
1 |
| 25 |
30556 |
AIR CONTROL FINISHING TIP |
1 |
| 26 |
PL63866 |
AIR CONTROL MECHANISM |
1 |
| 27 |
PL53148 |
LOWER FACEPLATE |
1 |
| 28 |
OA10604 |
BLACK TRIM KIT |
2 |
| 28 |
OA10605 |
GOLD PLATED TRIM KIT |
2 |
| 28 |
OA10606 |
NICKEL TRIM KIT |
2 |
| 29 |
PL29131 |
15" STEEL WIRE |
1 |
| 30 |
44073 |
CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM (P) |
2 |
| 31 |
44046 |
THERMODISC F110-20F |
1 |
| 32 |
44091 |
ROCKER SWITCH 2 POSITION MSR-8 |
1 |
| 33 |
44084 |
RHEOSTAT WITH NUT |
1 |
| 34 |
44087 |
RHEOSTAT NUT |
1 |
| 35 |
44085 |
RHEOSTAT KNOB |
1 |
| 36 |
PL53046 |
CENTRAL SECTION OF FACEPLATE |
1 |
| 37 |
PL53146 |
LH SIDE OF FACEPLATE |
1 |
| 38 |
PL53139 |
FACEPLATE TOP |
2 |
| 39 |
30068 |
STAINLESS STEEL COTTER PIN 1/8" X 1 1/2" |
4 |
| 40 |
PL53132 |
FRONT SECONDARY AIR TUBE |
1 |
| 41 |
PL53133 |
FRONT CENTER SECONDARY AIR TUBE |
1 |
| 42 |
PL53134 |
REAR CENTER SECONDARY AIR TUBE |
1 |
| 43 |
PL53135 |
REAR SECONDARY AIR TUBE |
1 |
| 44 |
21296 |
C-CAST BAFFLE 24 3/16" x 20 5/8" x 14 3/4" x 1 1/4" |
1 |
| 45 |
21148 |
BAFFLE INSULATION 24 3/16" x 20 5/8" x 14 3/4" x 1" |
1 |
| 46 |
PL34026 |
BAFFLE INSULATION WEIGHT |
1 |
