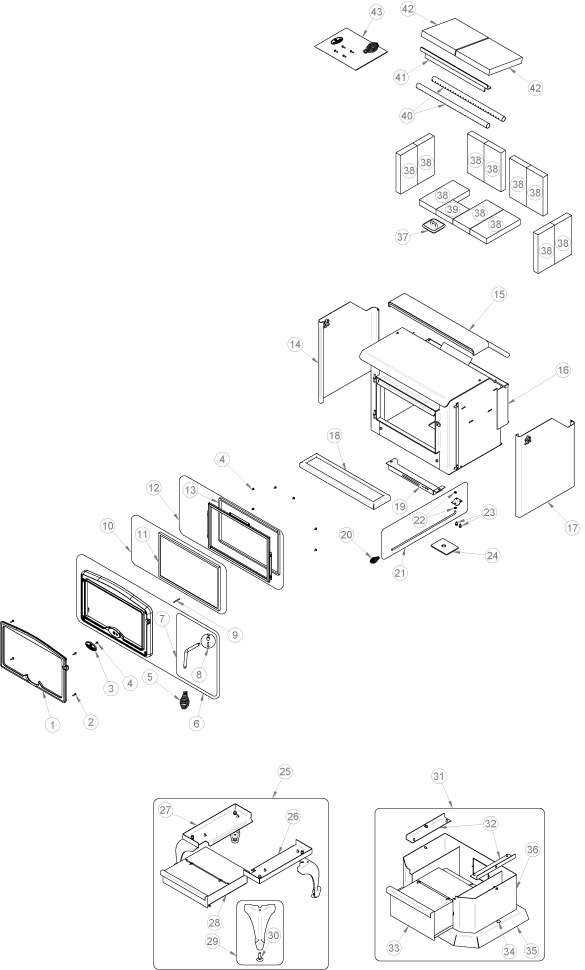

Part # |
Description |
Qty |
| 43 |
SE45127 |
INSTRUCTION MANUAL KIT FOR OSBURN 1100 STOVE |
1 |
| 1 |
OA10230 |
BLACK CAST IRON DOOR OVERLAY 1600 |
1 |
| 1 |
OA10232 |
GOLD PLATED CAST IRON DOOR OVERLAY1600 |
1 |
| 1 |
OA10234 |
BRUSHED NICKEL CAST IRON DOOR OVERLAY 1600 |
1 |
| 2 |
30123 |
SCREW #8 - 32 X 5/8'' PAN QUADREX ZINC |
4 |
| 3 |
30450 |
OSBURN DOOR LOGO |
1 |
| 4 |
30124 |
SCREW #8 - 32 X 5/16'' TRUSS QUADREX ZINC |
7 |
| 5 |
AC07868 |
1/2 " BLACK COIL HANDLE |
1 |
| 6 |
SE24164 |
OSBURN 1000, 1100, 1600 CAST IRON DOOR WITH HANDLE |
1 |
| 7 |
AC09185 |
DOOR LATCH KIT |
1 |
| 8 |
AC09187 |
HANDLE AND LATCH KIT |
1 |
| 9 |
30101 |
SPRING TENSION PIN 5/32" DIA X 1 1/2" LONG |
1 |
| 10 |
SE34103 |
REPLACEMENT GLASS WITH GASKET 10 1/8" X 16 1/8" |
1 |
| 11 |
AC06400 |
BLACK SELF-ADHESIVE GLASS GASKET KIT (6') |
1 |
| 12 |
SE34060 |
GLASS RETAINER FRAME WITH GASKET 1000-1100-1600 SERIE |
1 |
| 13 |
OA11390 |
SILICONE & DOOR GASKET REPLACEMENT KIT 7/8" (8 FEET) |
1 |
| 14 |
PL42033 |
LEFT DECORATIVE PANEL |
1 |
| 15 |
99999 |
BUILD TO ORDER |
1 |
| 16 |
99999 |
BUILD TO ORDER |
1 |
| 17 |
PL42034 |
RIGHT DECORATIVE PANEL |
1 |
| 18 |
PL34036 |
ASH SHELF |
1 |
| 19 |
PL42027 |
AIR CONTROL COVER |
1 |
| 20 |
AC07866 |
1/4 " BLACK COIL HANDLE |
1 |
| 21 |
SE42024 |
AIR CONTROL ROD ASSEMBLY |
1 |
| 22 |
30063 |
1/4" ID PUSHNUT |
2 |
| 23 |
30060 |
THREAD-CUTTING SCREW 1/4-20 x 1/2" F HEX STEEL SLOT WASHER C102 ZINC |
2 |
| 24 |
SE42021 |
AIR CONTROL PLATE ASSEMBLY |
1 |
| 25 |
OA10400 |
CAST BLACK LEG KIT WITH ASH PAN 1000- EL006 |
1 |
| 25 |
OA10405 |
GOLD PLATED LEG KIT WITH ASH PAN 1000-EL007 |
1 |
| 26 |
PL42035 |
LEGS AND DRAWER RIGHT MOUNTING SUPPORT |
1 |
| 27 |
PL42036 |
LEGS AND DRAWER GAUCHE MOUNTING SUPPORT |
1 |
| 28 |
SE42037 |
ASH DRAWER FOR 1000 AND 1100 STOVE ON LEGS |
1 |
| 29 |
PL24023-01 |
GOLD PLATED CAST IRON LEG WITH LEVELING BOLT |
4 |
| 29 |
PL24023-02 |
NICKEL PLATED CAST IRON LEG WITH LEVELING BOLT |
4 |
| 30 |
30050 |
LEVELING BOLT 3/8-16 X 1 1/2" |
4 |
| 31 |
OA10420 |
PEDESTAL WITH ASH PAN 1000,1100 (2009) |
1 |
| 32 |
99999 |
BUILD TO ORDER |
2 |
| 33 |
SE38103 |
ASH DRAWER FOR 1000 AND 1100 ON PEDESTAL |
1 |
| 34 |
30418 |
FINISHING PLUG 3/8" |
2 |
| 35 |
99999 |
BUILD TO ORDER |
1 |
| 36 |
99999 |
BUILD TO ORDER |
1 |
| 37 |
SE16059 |
ASH DUMP PLUG |
1 |
| 38 |
29001 |
4'' X 8'' X 1 1/4'' REFRATORY BRICK HD |
11 |
| 39 |
PL36049 |
4 1/2" X 4 1/2'' X 1 1/4'' REFRACTORY BRICK |
1 |
| 40 |
PL42019 |
SECONDARY AIR TUBE |
2 |
| 41 |
PL42018 |
BAFFLE SUPPORT |
1 |
| 42 |
21292 |
C-CAST BAFFLE 8 15/16" X 8 15/16" X 1 1/4" |
2 |
