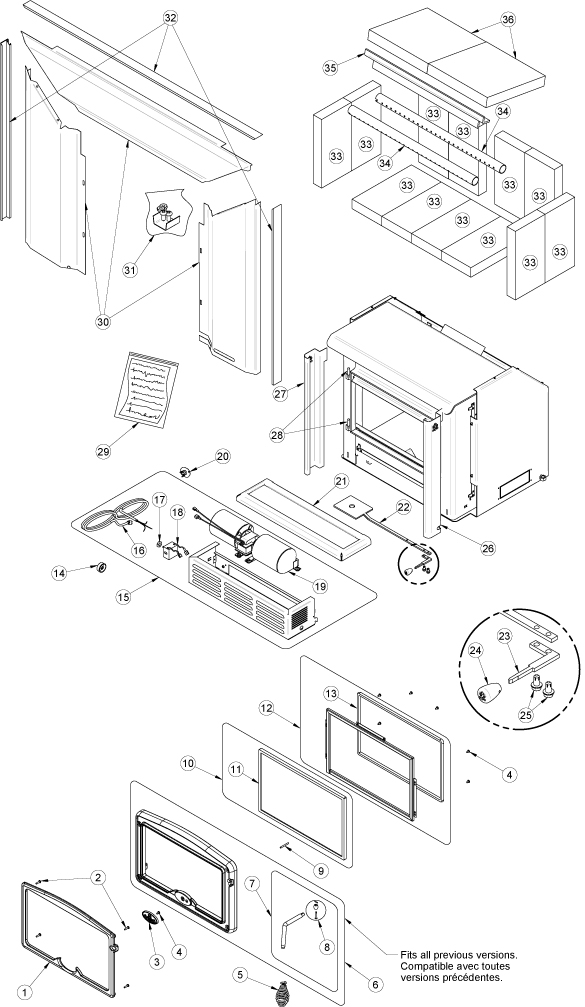

Part # |
Description |
Qty |
| 1 |
OA10230 |
BLACK CAST IRON DOOR OVERLAY 1600 |
1 |
| 1 |
OA10231 |
BROWN CAST IRON DOOR OVERLAY 1600 |
1 |
| 1 |
OA10232 |
GOLD PLATED CAST IRON DOOR OVERLAY1600 |
1 |
| 1 |
OA10234 |
BRUSHED NICKEL CAST IRON DOOR OVERLAY 1600 |
1 |
| 3 |
30123 |
SCREW #8 - 32 X 5/8'' PAN QUADREX ZINC |
4 |
| 4 |
30450 |
OSBURN DOOR LOGO |
1 |
| 5 |
30124 |
SCREW #8 - 32 X 5/16'' TRUSS QUADREX ZINC |
1 |
| 6 |
SE24164 |
OSBURN 1000, 1100, 1600 CAST IRON DOOR WITH HANDLE |
1 |
| 7 |
AC09185 |
DOOR LATCH KIT |
1 |
| 8 |
AC09187 |
HANDLE AND LATCH KIT |
1 |
| 9 |
30101 |
SPRING TENSION PIN 5/32" DIA X 1 1/2" LONG |
1 |
| 10 |
SE34103 |
REPLACEMENT GLASS WITH GASKET 10 1/8" X 16 1/8" |
1 |
| 11 |
AC06400 |
BLACK SELF-ADHESIVE GLASS GASKET KIT (6') |
1 |
| 12 |
SE34060 |
GLASS RETAINER FRAME WITH GASKET 1000-1100-1600 SERIE |
1 |
| 13 |
OA11395 |
SILICONE AND GASKET REPLACEMENT KIT 1/2" x 8' |
1 |
| 14 |
30124 |
SCREW #8 - 32 X 5/16'' TRUSS QUADREX ZINC |
6 |
| 15 |
44085 |
RHEOSTAT KNOB |
1 |
| 16 |
SE42276 |
BLOWER ASSEMBLY WITH HOUSING OSBURN 1100 INSERT |
1 |
| 17 |
60013 |
POWER CORD 96" X 18-3 |
1 |
| 18 |
44087 |
RHEOSTAT NUT |
1 |
| 19 |
44080 |
RHEOSTAT WITH NUT |
1 |
| 20 |
44089 |
DOUBLE CAGE BLOWER 120CFM 115V |
1 |
| 21 |
44046 |
THERMODISC F110-20F |
1 |
| 22 |
PL42277 |
ASH SHELF 1100 INSERT |
1 |
| 23 |
PL42271 |
AIR CONTROL MACANISM |
1 |
| 24 |
PL42270 |
AIR CONTROL HANDLE ROD |
1 |
| 25 |
30102 |
1/4'' CAST IRON AIR CONTROL HANDLE |
1 |
| 26 |
PL42278 |
RIGHT DECORATIVE PANEL 1100 INSERT |
1 |
| 27 |
PL42279 |
LEFT DECORATIVE PANEL 1100 INSERT |
1 |
| 28 |
SE45229 |
INSTRUCTION MANUAL KIT OSBURN 1100 INSERT |
1 |
| 29 |
OA10450 |
REGULAR FACEPLATE (29 X 44) |
1 |
| 30 |
SE15098 |
FACEPLATE HARDWARE KIT |
1 |
| 31 |
OA10121 |
BRASS REGULAR FACEPLATE TRIM KIT (29" X 44") |
1 |
| 31 |
OA10122 |
BLACK REGULAR FACEPLATE TRIM KIT (29" X 44") |
1 |
| 31 |
OA10123 |
BRUSHED NICKEL FACEPLATE TRIM KIT (29" X 44") |
1 |
| 32 |
AC07700 |
REFRACTORY BRICK 4 1/2'' X 9" X 1 1/4'' (MASTER PACK OF 9) |
18 |
| 33 |
PL42019 |
SECONDARY AIR TUBE |
2 |
| 34 |
SE42044 |
FRONT BAFFLE SUPPORT |
1 |
| 35 |
21292 |
C-CAST BAFFLE 8 15/16" X 8 15/16" X 1 1/4" |
2 |
