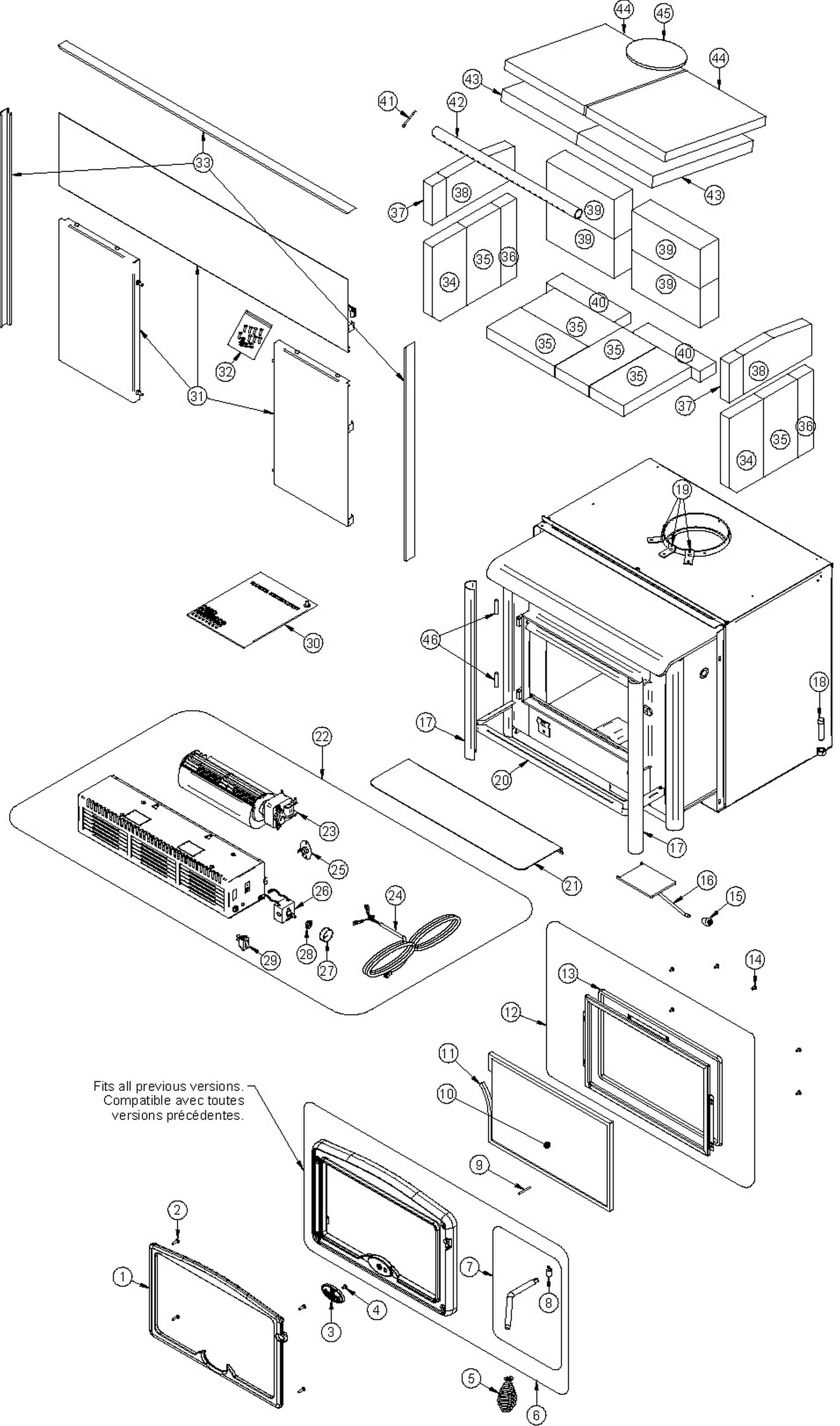

Part # |
Description |
Qty |
| 1 |
OA10230 |
BLACK CAST IRON DOOR OVERLAY 1600 |
1 |
| 1 |
OA10231 |
BROWN CAST IRON DOOR OVERLAY 1600 |
1 |
| 1 |
OA10232 |
GOLD PLATED CAST IRON DOOR OVERLAY1600 |
1 |
| 1 |
OA10234 |
BRUSHED NICKEL CAST IRON DOOR OVERLAY 1600 |
1 |
| 2 |
30123 |
SCREW #8 - 32 X 5/8'' PAN QUADREX ZINC |
4 |
| 3 |
30450 |
OSBURN DOOR LOGO |
1 |
| 4 |
30124 |
SCREW #8 - 32 X 5/16'' TRUSS QUADREX ZINC |
1 |
| 5 |
SE24164 |
OSBURN 1000, 1100, 1600 CAST IRON DOOR WITH HANDLE |
1 |
| 6 |
AC07868 |
1/2 " BLACK COIL HANDLE |
1 |
| 7 |
AC09187 |
HANDLE AND LATCH KIT |
1 |
| 8 |
AC09185 |
DOOR LATCH KIT |
1 |
| 9 |
30101 |
SPRING TENSION PIN 5/32" DIA X 1 1/2" LONG |
1 |
| 10 |
SE34103 |
REPLACEMENT GLASS WITH GASKET 10 1/8" X 16 1/8" |
1 |
| 11 |
AC06400 |
BLACK SELF-ADHESIVE GLASS GASKET KIT (6') |
1 |
| 12 |
SE34060 |
GLASS RETAINER FRAME WITH GASKET 1000-1100-1600 SERIE |
1 |
| 13 |
OA11395 |
SILICONE AND GASKET REPLACEMENT KIT 1/2" x 8' |
1 |
| 14 |
30124 |
SCREW #8 - 32 X 5/16'' TRUSS QUADREX ZINC |
6 |
| 15 |
30102 |
1/4'' CAST IRON AIR CONTROL HANDLE |
1 |
| 16 |
SE34065 |
AIR CONTROL MECHANISM |
1 |
| 17 |
PL34070-02 |
BLACK SIDE DECORATIVE COLOMN |
2 |
| 18 |
PL34078 |
ASH SHELF |
1 |
| 19 |
PL34079-01 |
BLACK ASH SHELF TRIM |
1 |
| 20 |
SE36003 |
120 CFM BLOWER/FAN WITH HOUSING |
1 |
| 21 |
44070 |
CROSSFLOW BLOWER 115V-60Hz-56W (B) |
1 |
| 22 |
60013 |
POWER CORD 96" X 18-3 |
1 |
| 23 |
44046 |
THERMODISC F110-20F |
1 |
| 24 |
44080 |
RHEOSTAT WITH NUT |
1 |
| 25 |
44085 |
RHEOSTAT KNOB |
1 |
| 26 |
44087 |
RHEOSTAT NUT |
1 |
| 27 |
44093 |
ROCKER SWITCH 2 POSITION (ON - OFF) WITH GOLD CONTACT |
1 |
| 29 |
SE45084 |
INSTRUCTION MANUEL KIT OSBURN 1600 INSERT |
1 |
| 29 |
OA10310 |
LARGE FACEPLATE (32 X 50) 1600-AF004 |
1 |
| 29 |
OA10305 |
MEDIUM FACEPLATE (32 X 44) 1600-AF003 |
1 |
| 29 |
OA10300 |
REGULAR FACEPLATE (29 X 44) 1600-AF002 |
1 |
| 30 |
SE15099 |
FACEPLATE HARDWARE KIT |
1 |
| 31 |
OA10121 |
BRASS REGULAR FACEPLATE TRIM KIT (29" X 44") |
1 |
| 31 |
OA10122 |
BLACK REGULAR FACEPLATE TRIM KIT (29" X 44") |
1 |
| 31 |
OA10123 |
BRUSHED NICKEL FACEPLATE TRIM KIT (29" X 44") |
1 |
| 31 |
OA10124 |
BRASS FACEPLATE TRIM KIT (32" X 44") |
1 |
| 31 |
OA10125 |
BLACK FACEPLATE TRIM KIT (32" X 44") |
1 |
| 31 |
OA10126 |
BRUSHED NICKEL FACEPLATE TRIM KIT (32" X 44") |
1 |
| 31 |
OA10127 |
BRASS LARGE FACEPLATE TRIM KIT (32" X 50") |
1 |
| 31 |
OA10128 |
BLACK LARGE FACEPLATE TRIM KIT (32" X 50") |
1 |
| 31 |
OA10129 |
BRUSHED NICKEL FACEPLATE TRIM KIT (32" X 50") |
1 |
| 32 |
PL36046 |
4" 1/2 X 9" X 1" X 1" REFRACTORY BRICK |
2 |
| 33 |
AC03020 |
4 1/2'' X 9" X 1 1/4'' HIGH DENSITY BRICK (MASTER PACK OF 9) |
9 |
| 34 |
PL36021 |
REFRACTORY BRICK 2 1/8" X 9" X 1 1/4'' |
4 |
| 35 |
PL36024 |
1 7/8" X 4 1/2" X 1 1/4" REFRACTORY BRICK |
2 |
| 36 |
PL36055 |
4 1/2" X 9" X 7/8" X 5'' REFRACTORY BRICK |
2 |
| 37 |
29016 |
4 1/2" x 9" x 2 1/2" REFRACTORY BRICK HD |
4 |
| 38 |
30068 |
STAINLESS STEEL COTTER PIN 1/8" X 1 1/2" |
1 |
| 39 |
PL34019 |
FRONT SECONDARY AIR TUBE |
1 |
| 40 |
21291 |
C-CAST BAFFLE 13 1/2" X 10" X 1 1/4" |
2 |
| 41 |
PL34047 |
10 1/2" x 13 1/2" x 1" BAFFLE INSULATION |
2 |
| 42 |
PL34026 |
BAFFLE INSULATION WEIGHT |
1 |
