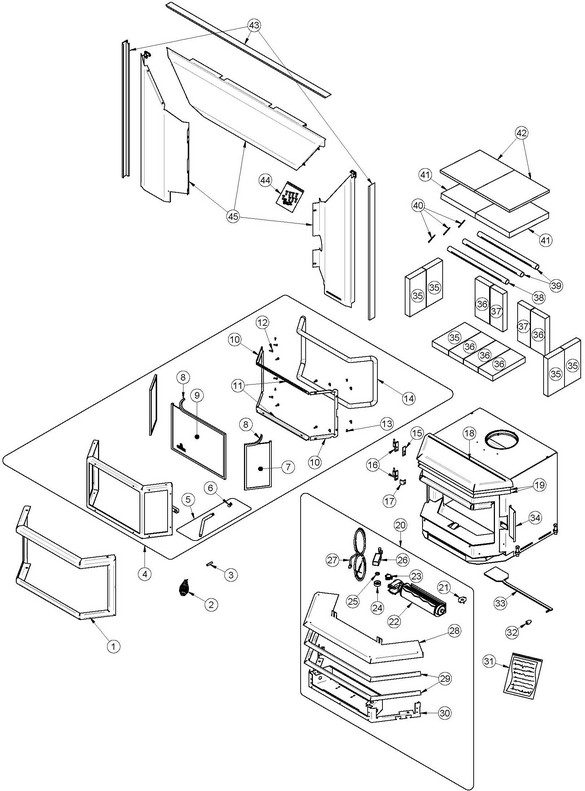

Part # |
Description |
Qty |
| 1 |
OA10040 |
BLACK DOOR OVERLAY FOR 1800-BRITANNIA |
1 |
| 1 |
OA10045 |
GOLD DOOR OVERLAY FOR 1800-BRITANNIA |
1 |
| 1 |
OA10050 |
BRUSHED NICKEL DOOR OVERLAY 1800-BRITANNIA |
1 |
| 2 |
AC07868 |
1/2 " BLACK COIL HANDLE |
1 |
| 3 |
30112 |
SPRING PIN 5/16" x 1 3/8" |
1 |
| 4 |
SE37150 |
DOOR ASSEMBLY WITHOUT OVERLAY 1800 SERIE |
1 |
| 5 |
AC09187 |
HANDLE AND LATCH KIT |
1 |
| 6 |
AC09185 |
DOOR LATCH KIT |
1 |
| 7 |
SE37154 |
5 3/8'' X 10 13/16" REPLACEMENT GLASS WITH GASKET |
2 |
| 8 |
AC06400 |
BLACK SELF-ADHESIVE GLASS GASKET KIT (6') |
3 |
| 9 |
SE37155 |
REMPLACEMENT GLASS WITH GASKET 14 3/4'' X 10 13/16'' |
1 |
| 10 |
PL37151 |
RIGHT OR LEFT GLASS RETAINER |
2 |
| 11 |
PL37152 |
TOP OR BOTTOM MIDDLE GLASS RETAINER |
2 |
| 12 |
30026 |
THREAD CUTTING SCREW 10-24 F 5/8" HEX WASHER HEAD |
12 |
| 13 |
30021 |
SELF TAPPING SCREW 8-32 "F" TYPE X 7/16" FLAT HEAD PHILLIPS |
4 |
| 14 |
OA11390 |
SILICONE & DOOR GASKET REPLACEMENT KIT 7/8" (8 FEET) |
1 |
| 15 |
PL35056 |
SHIM |
1 |
| 16 |
SE35021 |
HINGE ASSEMBLY |
2 |
| 17 |
PL35017 |
DOOR STOP |
1 |
| 18 |
SE37106 |
TOP BLACK LOUVER ASSEMBLY |
1 |
| 19 |
PL37104 |
BLACK LOUVRE OF UPPER GRILL |
2 |
| 19 |
PL37104PG |
GOLD PLATED LOUVRE OF UPPER GRILL |
2 |
| 19 |
PL37104PN |
TOP LOUVRE TRIM BRUSHED NICKEL |
2 |
| 20 |
SE37100 |
1800 INSERT BLOWER ASSEMBLY 120V WITH BLACK LOUVERS |
1 |
| 21 |
44046 |
THERMODISC F110-20F |
1 |
| 22 |
44075 |
TANGENTIAL BLOWER 1800 115V-60hZ-30W (S) |
1 |
| 23 |
44091 |
ROCKER SWITCH 2 POSITION MSR-8 |
1 |
| 24 |
44085 |
RHEOSTAT KNOB |
1 |
| 25 |
44087 |
RHEOSTAT NUT |
1 |
| 26 |
44084 |
RHEOSTAT WITH NUT |
1 |
| 27 |
60013 |
POWER CORD 96" X 18-3 |
1 |
| 28 |
PL37100 |
ASH SHELF |
1 |
| 29 |
PL37101 |
BLACK LOUVER FOR 1800 INSERT BLOWER ASSEMBLY |
2 |
| 29 |
PL37101PG |
GOLD PLATED LOUVER FOR 1800 INSERT BLOWER ASSEMBLY |
2 |
| 30 |
PL37102 |
LOUVRE BRACKET |
1 |
| 31 |
SE45058 |
OSBURN 1800 INSER INSTRUCTION MANUAL KIT |
1 |
| 32 |
30102 |
1/4'' CAST IRON AIR CONTROL HANDLE |
1 |
| 33 |
PL37119 |
AIR CONTROL PLATE |
1 |
| 34 |
PL35135 |
DOOR HANDLE HEAT SHIEILD |
1 |
| 35 |
29020 |
4 1/2'' X 9'' X 1 1/4'' REFRACTORY BRICK HD |
5 |
| 36 |
29011 |
4'' X 9" X 1 1/4" REFRACTORY BRICK HD |
7 |
| 37 |
PL37031 |
FRONT SECONDARY AIR TUBE 1800 SERIE |
1 |
| 38 |
PL37030 |
REAR AND MIDDLE SECONDARY AIR TUBE 1800 SERIE |
2 |
| 39 |
30068 |
STAINLESS STEEL COTTER PIN 1/8" X 1 1/2" |
3 |
| 40 |
21295 |
C-CAST BAFFLE 10 7/8" X 9 7/16" X 1 1/4" |
2 |
| 41 |
PL37027 |
11" X 9 5/8" X 1/2" RIGID BAFFLE INSULATION |
2 |
| 42 |
OA10020 |
MEDIUM FACEPLATE WITHOUT TRIM(32 X 44) 1800MFP |
1 |
| 42 |
OA10030 |
REGULAR FACEPLATE WITHOUT TRIM(29 X 44) 1800RFP |
1 |
| 43 |
SE15098 |
FACEPLATE HARDWARE KIT |
1 |
| 44 |
OA10121 |
BRASS REGULAR FACEPLATE TRIM KIT (29" X 44") |
1 |
| 44 |
OA10122 |
BLACK REGULAR FACEPLATE TRIM KIT (29" X 44") |
1 |
| 44 |
OA10123 |
BRUSHED NICKEL FACEPLATE TRIM KIT (29" X 44") |
1 |
| 44 |
OA10124 |
BRASS FACEPLATE TRIM KIT (32" X 44") |
1 |
| 44 |
OA10125 |
BLACK FACEPLATE TRIM KIT (32" X 44") |
1 |
| 44 |
OA10126 |
BRUSHED NICKEL FACEPLATE TRIM KIT (32" X 44") |
1 |
