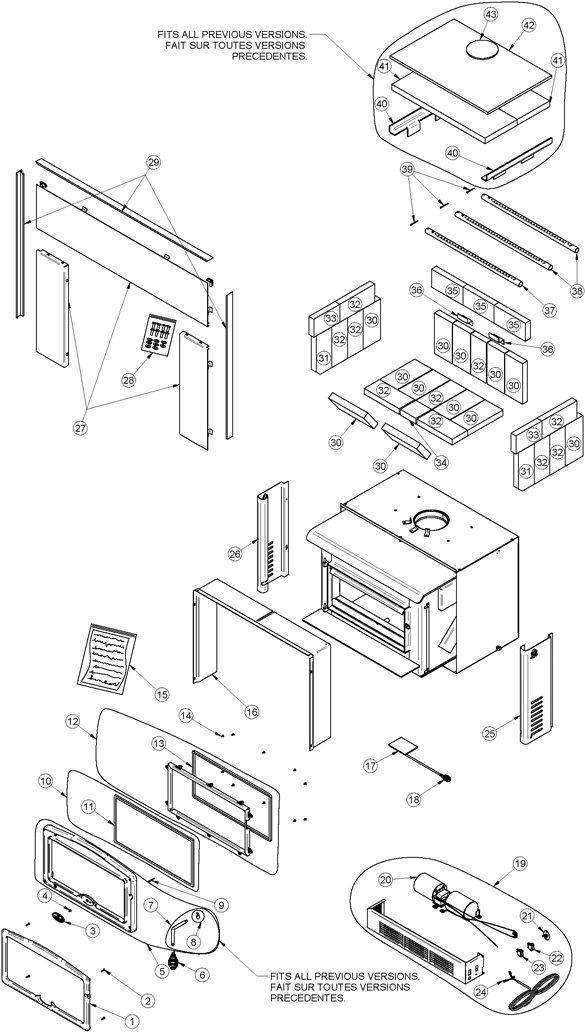

Part # |
Description |
Qty |
| 1 |
OA10090 |
BLACK CAST IRON DOOR OVERLAY FOR OSBURN 2400 |
1 |
| 1 |
OA10091 |
GOLD CAST IRON DOOR OVERLAY FOR OSBURN 2400 |
1 |
| 1 |
OA10092 |
BRUSHED NICKEL CAST IRON DOOR OVERLAY FOR OSBURN 2400 |
1 |
| 2 |
30153 |
METAL SCREW #8 X 1/2" PAN SQUARE TEK BLACK SELF DRILLING |
4 |
| 3 |
30450 |
OSBURN DOOR LOGO |
1 |
| 4 |
30124 |
SCREW #8 - 32 X 5/16'' TRUSS QUADREX ZINC |
1 |
| 5 |
SE24134 |
CAST IRON DOOR WITH HANDLE 2400 SERIE OVERLAY VERSION |
1 |
| 6 |
AC07868 |
1/2 " BLACK COIL HANDLE |
1 |
| 7 |
AC09187 |
HANDLE AND LATCH KIT |
1 |
| 8 |
AC09185 |
DOOR LATCH KIT |
1 |
| 9 |
30101 |
SPRING TENSION PIN 5/32" DIA X 1 1/2" LONG |
1 |
| 10 |
SE39105-01 |
CERAMIC GLASS WITH GASKET 10 5/16" X 20 1/16" |
1 |
| 11 |
AC06400 |
BLACK SELF-ADHESIVE GLASS GASKET KIT (6') |
1 |
| 12 |
SE39102 |
GLASS RETAINER WITH GASKET INSTALLED |
1 |
| 13 |
OA11400 |
SILICONE & GASKET KIT 3/4" (8 FEET) |
1 |
| 14 |
30124 |
SCREW #8 - 32 X 5/16'' TRUSS QUADREX ZINC |
10 |
| 15 |
SE45111 |
INSTRUCTION MANUEL KIT FOR OSBURN 2400 INSERT |
1 |
| 16 |
PL39094 |
FACEPLATE EXTENSION |
1 |
| 17 |
SE34021 |
AIR CONTROL PLATE |
1 |
| 18 |
AC07866 |
1/4 " BLACK COIL HANDLE |
1 |
| 19 |
SE39150 |
BLOWER ASSEMBLY WITH HOUSING 2400 INSERT |
1 |
| 20 |
44076 |
DOUBLE CAGE BLOWER 120 CFM 115V |
1 |
| 21 |
44046 |
THERMODISC F110-20F |
1 |
| 22 |
44092 |
3 POSITION ROCKER SWITCH (HI-OFF-LOW) |
1 |
| 23 |
44093 |
ROCKER SWITCH 2 POSITION (ON - OFF) WITH GOLD CONTACT |
1 |
| 24 |
44008 |
Spade terminal 50-008-045 |
1 |
| 25 |
PL39149 |
RIGHT DECORATIVE PANEL 2400 INSERT |
1 |
| 26 |
PL39148 |
LEFT DECORATIVE PANEL FOR 2400 INSERT |
1 |
| 27 |
OA10315 |
REGULAR FACEPLATE (29 X 44) 2400-AF011 |
1 |
| 27 |
OA10320 |
MEDIUM FACEPLATE (32 X 44) 2400-AF012 |
1 |
| 27 |
OA10325 |
LARGE FACEPLATE (32 X 50) 2400-AF013 |
1 |
| 28 |
SE15099 |
FACEPLATE HARDWARE KIT |
1 |
| 29 |
OA10122 |
BLACK REGULAR FACEPLATE TRIM KIT (29" X 44") |
1 |
| 29 |
OA10123 |
BRUSHED NICKEL FACEPLATE TRIM KIT (29" X 44") |
1 |
| 29 |
OA10124 |
BRASS FACEPLATE TRIM KIT (32" X 44") |
1 |
| 29 |
OA10125 |
BLACK FACEPLATE TRIM KIT (32" X 44") |
1 |
| 29 |
OA10126 |
BRUSHED NICKEL FACEPLATE TRIM KIT (32" X 44") |
1 |
| 29 |
OA10127 |
BRASS LARGE FACEPLATE TRIM KIT (32" X 50") |
1 |
| 29 |
OA10128 |
BLACK LARGE FACEPLATE TRIM KIT (32" X 50") |
1 |
| 29 |
OA10129 |
BRUSHED NICKEL FACEPLATE TRIM KIT (32" X 50") |
1 |
| 29 |
OA10121 |
BRASS REGULAR FACEPLATE TRIM KIT (29" X 44") |
1 |
| 30 |
AC03020 |
4 1/2'' X 9" X 1 1/4'' HIGH DENSITY BRICK (MASTER PACK OF 9) |
18 |
| 31 |
PL36058 |
4" X 9" X 1" X 1" REFRACTORY BRICK |
2 |
| 32 |
29011 |
4'' X 9" X 1 1/4" REFRACTORY BRICK HD |
9 |
| 33 |
PL36014 |
4" X 6 1/2'' X 1 1/4" REFRACTORY BRICK |
2 |
| 34 |
PL36048 |
4" X 4" X 1 1/4'' REFRACTORY BRICK |
1 |
| 35 |
AC03030 |
4'' X 8" X 1 1/4'' HIGH DENSITY BRICK (MASTER PACK OF 9) |
9 |
| 36 |
PL39027 |
REAR BRICK RETAINER |
2 |
| 37 |
PL39015 |
FRONT SECONDARY AIR TUBE |
1 |
| 38 |
PL39018 |
MIDDLE & BACK SECONDARY AIR TUBE |
2 |
| 39 |
30068 |
STAINLESS STEEL COTTER PIN 1/8" X 1 1/2" |
3 |
| 40 |
PL39013 |
SIDE BAFFLE SUPPORT 2400 SERIE |
2 |
| 41 |
21297 |
C-CAST BAFFLE 23 7/8" X 8 1/4" X 1 1/4" |
2 |
| 42 |
PL39047 |
BAFFLE INSULATION 16 3/8" X 25" X 1/2" |
1 |
| 43 |
PL34026 |
BAFFLE INSULATION WEIGHT |
1 |
